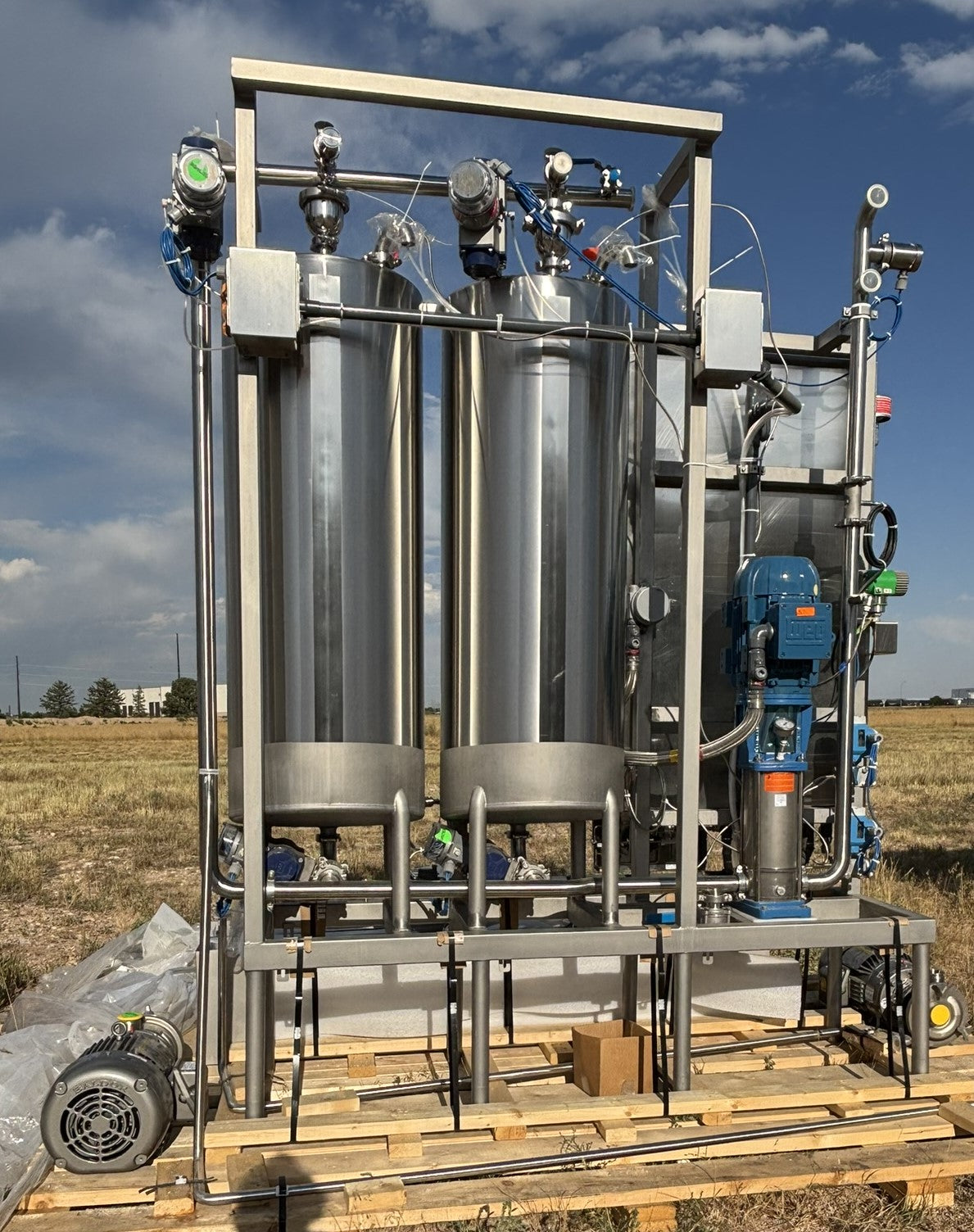

Solution Tank #1
• The tank used to hold fresh solvent (Xylene or (IBIB – isobutyl)).
o Volume: 90 gallons
o Dimensions: 22” Diameter x 60” sidewall
o Top Head: Flat panned 14 ga.
o Shell: 14 ga.
o Bottom Head: Flat panned and sloped 14 ga.
o Insulation: None
o Access: 8” Handhole
o Overflow: None
o Spare Connections: None
o Design: Atmospheric
o Material: 316ss wetted surfaces
o Interior Finish: 32 μin Ra with weld color removed
o Exterior Finish: 32 μin Ra with welds ground and polished top head and sidewall / bead blast bottom head
o Mounting: Welded to the structural frame
• (1) 1.5” Sanitary pressure relief valve (exhaust)
• (1) 1.5” Fresh NMP inlet ball valve
• (1) 0.75” N2 inlet ball valve
• (1) 1.5” Vacuum breaker (check valve)
• (1) Level transmitter (differential) with 4-20mA output
6.2. Solution Tank #2
• The tank used to hold fresh or recovered Solvent. (Xylene or (IBIB – isobutyl)).
o Volume: 90 gallons
o Dimensions: 22” Diameter x 60” sidewall
o Top Head: Flat panned 14 ga.
o Shell: 14 ga.
o Bottom Head: Flat panned and sloped 14 ga.
o Insulation: None
o Access: 8” Handhole
o Overflow: None
o Spare Connections: None
o Design: Atmospheric
o Material: 316ss wetted surfaces
o Interior Finish: 32 μin Ra with weld color removed
o Exterior Finish: 32 μin Ra with welds ground and polished top head and sidewall / bead blast bottom head
o Mounting: Welded to the structural frame
• (1) 1.5” Sanitary pressure relief valve (exhaust)
• (1) 0.75” N2 inlet ball valve
• (1) 1.5” Recovered NMP inlet ball valve
• (1) 1.5” Vacuum breaker (check valve)
• (1) Level transmitter (differential) with 4-20mA output
Solution Tank #2
• The tank used to hold fresh or recovered Solvent. (Xylene or (IBIB – isobutyl)).
o Volume: 90 gallons
o Dimensions: 22” Diameter x 60” sidewall
o Top Head: Flat panned 14 ga.
o Shell: 14 ga.
o Bottom Head: Flat panned and sloped 14 ga.
o Insulation: None
o Access: 8” Handhole
o Overflow: None
o Spare Connections: None
o Design: Atmospheric
o Material: 316ss wetted surfaces
o Interior Finish: 32 μin Ra with weld color removed
o Exterior Finish: 32 μin Ra with welds ground and polished top head and sidewall / bead blast bottom head
o Mounting: Welded to the structural frame
• (1) 1.5” Sanitary pressure relief valve (exhaust)
• (1) 0.75” N2 inlet ball valve
• (1) 1.5” Recovered NMP inlet ball valve
• (1) 1.5” Vacuum breaker (check valve)
• (1) Level transmitter (differential) with 4-20mA output
Buyer is responsible for all freight costs and arrangements. We can facilitate those logistics.
Additional information available upon request, please contact acaruso@waste-not.com, call or text 970-219-3228
